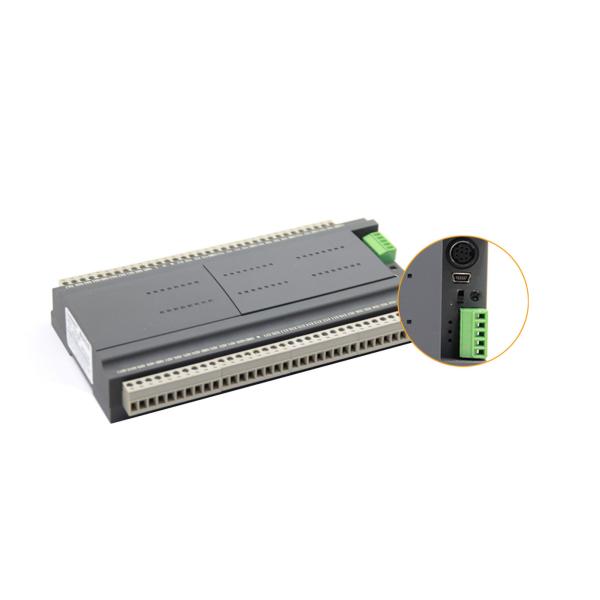

32K 100KHz Programmable Logical Controller Public Terminal Isolated Modular PLC

  • 1
  • 2

Brand Name : Coolmay

Model Number : CX3G-48MT

Certification : CE

Place of Origin : Shenzhen

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100,000 pcs per month

Delivery Time : 3-7 work days

Packaging Details : Packed with standard carton box

Dimension : 200*90*36mm

Cutout size : 192*99mm

Analog I/O : 8AI/4AO

I/O level : Input: Passive NPN, public terminal isolated / Transistor output: NPN

Register : 32K retentive

programming port : 1 Mini type B USB, 1 RS232, 2 RS485 COM ports

High speed pulse : 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz

High speed counting : ingle phase 6 channel 60KHz

Contact Now

32K 100KHz Programmable Logical Controller Public Terminal Isolated Modular PLC
32K Program Capacity Industrial Control PLC Support Interrupt Passive NPN, Public Terminal Isolated

Coolmay PLC programmable controller adopts power separation technology for the first time in hardware innovation. It is ultra-thin, low heat, fast heat dissipation, stable and reliable, PLC is highly integrated with analog and temperature, powerful, easy to use, cost and space saving, and flexible. It has strong performance and can be used in various occasions requiring PLC control without external PLC expansion modules.


Parameter:

Dimension200*90*36mm
Cutout size192*99mm
InstallationFixed hole installation and DIN-Rail (35mm )
FeaturesSupport interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
I/O level

Input: Passive NPN, public terminal isolated
Transistor output: NPN

Digital I/O24DI/24DO
DO type and load

Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM;

High speed countingSingle phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
High speed pulse8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz

Analog I/O

8AI/4AO

AI type
(optional)

Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V

AO type
(optional)

0~10V/ 0-~5V/ 0~20mA/ 4~20mA
-5~5V/ -10~10V (2DA for 1 minus voltage)

Default1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
Optional

Default 2 RS485 COM ports can be customized as
1 RS485, 1 RS232 COM ports,
or 1 RS485 COM port, 1 CAN (2.0A/B),
or 1 RS232 COM port, 1 CAN (2.0A/B)
CX3G-48M can add Ethernet port.

SoftwareCompatible with GX WORKS 2

Features:

1. Structure: Highly integrated, compact structure, cost saving and space saving.
2. Programming software: Compatible with GX WORKS 2.

3. Input:

Switching quantity: 24 digital inputs (passive NPN, public terminal isolation).
Analog quantity: 8 AD inputs.

Optional: EKSTJ type thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4-20mA/ -5V~5V/ -10V~10V or mixed type and other special specifications (thermocouple supports negative temperature).
4. High-speed count input: 6-channel single-phase 60KHz high-speed counting or 2-channel AB(Z) phase 60KHz+1 channel AB phase 10KHz.
5. Output:

Switching quantity: 24-channel transistor output (maximum load 500mA) or relay output (max load 5A) or mixed.
Analog quantity: 4 DA outputs can be selected.

Optional: 0-10V/0-5V/0-20mA/4-20mA/-5V~5V/ -10V~10V or mixed type (2DA for 1 mins voltage).
6. High speed pulse: Support 8-channel pulse output (Y0-Y3 is 100KHz, Y4-Y7 is 10KHz; high-speed counting + high-speed pulse total can not exceed 480KHz).
7. Communication: Support RS485 communication, RS232 port and CAN 2.0A/B (optional programming port protocol/MODBUS protocol/RS protocol/BD board protocol).
8. Program encryption: Support PLC special encryption, completely prohibit reading the program, protect the intellectual rights and interests of engineers and manufacturers.
9. Signal filtering: Support input signal filtering time setting, filtering time default 10ms (settable range 6-60ms).
